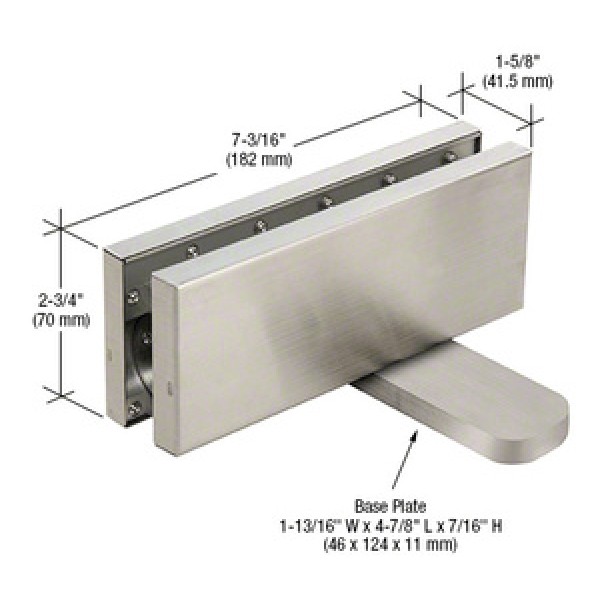

CRL380H, CRL Hydraulic Patch Fitting with 2-9/16" Setback - 90° Hold Open Model
Product details
Finish/Color:
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2-3/4 in. (70 mm)
Hold Open
Yes
Length
7-3/16 in. (183 mm)
Maximum Door Width
39 in. (991 mm)
Maximum Panel Weight
220 lbs. (99.8 kg)
Pivot Setback
2-9/16
Width
1-5/8 in. (41 mm)
Product Overview
2-9/16" (65 mm) Pivot Point
Available in Brushed and Polished Stainless, Satin Anodized, and Matte Black Finishes
Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Glass
Flush Mount - No Hole Required in the Floor
For Interior Use Only
Must be used with PH21A top patches
CRL380 Series Hydraulic Patch Fittings are medium duty for interior use. There are two adjustment screws to adjust the latching speed and the swing speed. The Hydraulic Patch Fitting is designed for installation without the need for any other floor or overhead closing devices. Maximum door width is 39" (1 m) and maximum weight is 220 lbs (100kg). Fitting can accommodate 3/8" (10 mm), and 1/2" (12 mm) tempered glass. Glass fabrication (cut-out) is required.
Product Warning:
Custom headers with 2-9/16" [65 mm] pivot points must be ordered if needed. These fittings are not compatible with the stock NH36xx and NH72xx.
