DR4S with Lock, CRL 1/2" Glass 4" Square Door Rail with lock - 35-3/4" Length

QUICK SHIPPING* Usually ships in 7 business day
Quantity:
Model: {{ product.model }}
Compare To: {{ product.cj_compare_to }}
Delivery Pick Up

{{ variable.name }}

{{ value.name }}
Login To See Your Price

Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

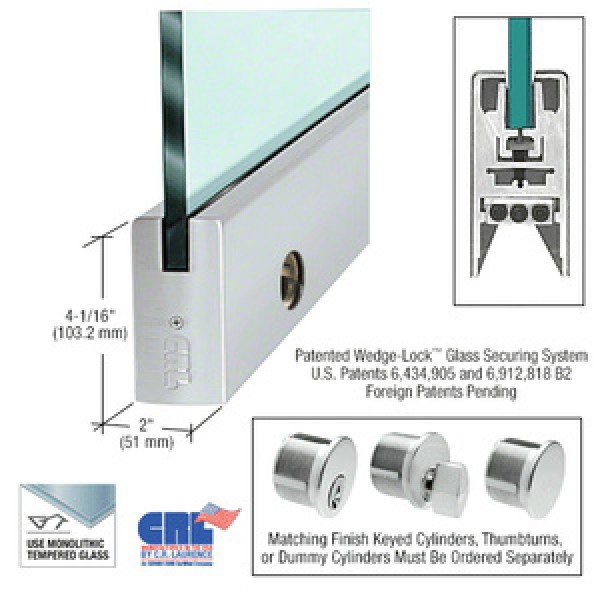

DR4S with Lock, CRL 1/2" Glass 4" Square Door Rail with lock - 35-3/4" Length

Product details

  • Cylinder Hole Prep
    Both Sides
  •
  • Glazing Thickness
    1/2 in. (12 mm)
  •
  • Includes Lock
    Yes
  •
  • Length
    35-3/4 in. (908 mm)
  •
  • Material
    Aluminum
  •
  • Nominal Height
    4 in. (102 mm)
  •
  • Profile
    Square
  •
  • Width
    1-7/8 in. (48 mm)
Product Overview

  • 35-3/4" (908 mm) Length for 1/2" (12 mm) Glass
  • Use Monolithic Tempered Glass
  • Patented Wedge-Lock® Glass Securing System
  • Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
  • Available in Several Stock Architectural Finishes - Custom Finishes Available
  • Available With and Without Locks
  • Matching Sidelite Rails Available

4 inch Square Door Rail Non Clad with Non Clad Header CAD Drawings.pdf

4 inch Square Door Rail Non Clad with Threshold CAD Drawings.pdf

4 inch Square Door Rail Top and Bottom Clad or Non Clad CAD Drawings.pdf

Bottom 4 inch Square Door Rail Clad CAD Drawings.pdf

Bottom 4 inch Square Door Rail Clad with Threshold CAD Drawings.pdf

Bottom 4 inch Square Door Rail Non Clad CAD Drawings.pdf

Top 4 inch Square Door Rail Clad CAD Drawings.pdf

Top 4 inch Square Door Rail Clad or Non Clad with Bottom 6 inch Square Door Rail Clad Only CAD Drawin.pdf

Top 4 inch Square Door Rail Clad with Bottom 6 inch Square Door Rail Clad with Clad Header CAD Drawin (1).pdf

Top 4 inch Square Door Rail Non Clad with Bottom 6 inch Square Door Rail Clad with Non Clad Header CA.pdf

Top 4 inch Square Door Rail Clad with Bottom 10 inch Square Door Rail Clad with Clad Header CAD Drawi.pdf

Top 4 inch Square Door Rail Non Clad CAD Drawings.pdf

Top 4 inch Square Door Rail Non Clad with Bottom 6 inch Square Door Rail Clad with Non Clad Header CA.pdf

Top 4 inch Square Door Rail Non Clad with Bottom 10 inch Square Door Rail Clad with Non Clad Header C.pdf

Top and Bottom 4 inch Square Door Rail Clad with Clad Header CAD Drawings.pdf
