SDCD38GM,CRL Gun Metal 3/8" Fixed Panel Shower Door Deep U-Channel - 95"

QUICK SHIPPING* Usually ships in 7 business day
Quantity:
Model: {{ product.model }}
Sku: {{ product.sku }}
Delivery Pick Up

{{ variable.name }}

{{ value.name }}
Login To See Your Price

Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

SDCD38GM,CRL Gun Metal 3/8" Fixed Panel Shower Door Deep U-Channel - 95"

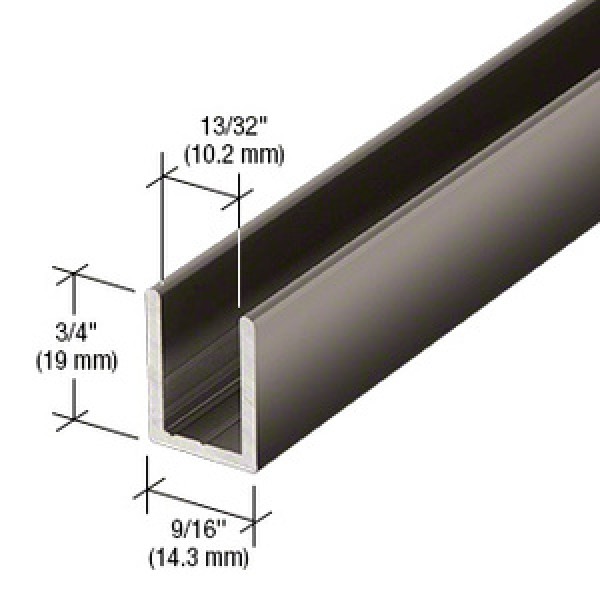

Product details

  • Finish/Color:
    Gun Metal
  •
  • Glazing Pocket Width
    13/32
  •
  • Glazing Thickness
    3/8 in. (10 mm)
  •
  • Height
    3/4 in. (19 mm)
  •
  • Length
    95 in. (2413 mm)
  •
  • Profile
    Deep
  •
  • Width
    9/16 in. (14 mm)
Product Overview




  • For 3/8" (10 mm) Thick Glass
  • Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
  • Use Monolithic Tempered Glass
  • May Be Used Alone or with Regular Depth U-Channel
  • Choice of Deep or Regular Styles
  • Wet Glazed with Clear Silicone to Secure Glass
  • All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
  • End Caps Offered to Conceal Ends of Channel
  • Available in Up to Seventeen Finishes

Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" (10 mm) thick glass are available, and are individually wrapped to protect the finish. This 3/4" (19 mm) high profile Deep U-Channel can be used as the top channel in installations where the glass must be inserted into the top, then lowered into the 3/8" (10 mm) tall Regular U-Channel used at the bottom of the enclosure.

We offer two profiles of Aluminum U-Channels for shower door installations. Fixed Panel Regular and Deep U-Channels are for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" or 1/2" (10 or 12 mm) glass are available in each style, and are individually wrapped to protect the finish.
