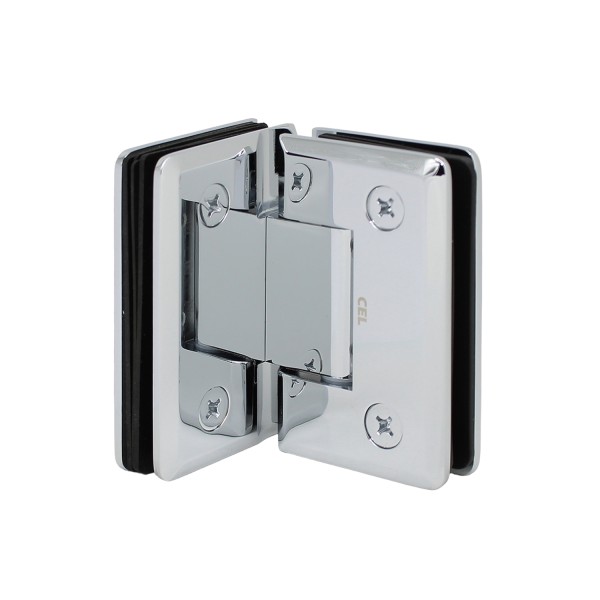

CP1N092, 90 Degree Glass to Glass Hinge for Frameless Shower Door

CP1N092, 90 Degree Glass to Glass Hinge for Frameless Shower Door

{{ product.price_format }}
{{ product.origin_price_format }}
QUICK SHIPPING* Usually ships in 1 business day
Stock:
Brand: CEL
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} product.

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}
–
+

Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Glass Fabrication Required YES
MATERIAL Brass
Edge Profile Beveled
5 Degree Pre-Set NO
Mounting Type Glass to Glass
Glazing Thickness (inches) 3/8" to 1/2"
Adjustable NO
Glass to Glass/Wall Angle (Degree) 90°

MODEL# CP1N092

90 Degree Glass to Glass Hinge for Frameless Shower Door



Height (inches) 3 1/2"
Self-Centering YES
Max. Door Width for 2 Hinges (inches) 28"
Max. Door Width for 3 Hinges (inches) 32"
Width-Door Portion(inches) 2 3/16"
Width-Sidelite Portion (inches) 2 3/16"
Max. Door Weight for 2 Hinge (lbs) 80 LBS
Max. Door Weight for 3 Hinge (lbs) 120 LBS



SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.



Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
