Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

SER78,  CRL Deluxe 180 Degree Serenity Series Sliding System (HARDWARE ONLY)



Product details

  •
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  •
  • Length
    78-3/4 in. (2000 mm)
  •
  • Material
    Brass
  •
  • Maximum Door Weight
    88 lbs. (39.9 kg)
  •
  • Maximum Door Width
    30 in. (762 mm)
  •
  • Series
    Serenity
Product Overview

  • System Features One Sliding Door and One Fixed Panel
  • Use Monolithic Tempered Glass
  • Specially Designed Roller Bearings for Quiet Door Movement
  • Fixed and Sliding Panels May Be Reversed for Installation
  • For 5/16" to 3/8" (8 to 10 mm) Thick Tempered Glass (Not Included)
  • U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately
  • Available in Several Architectural Finishes

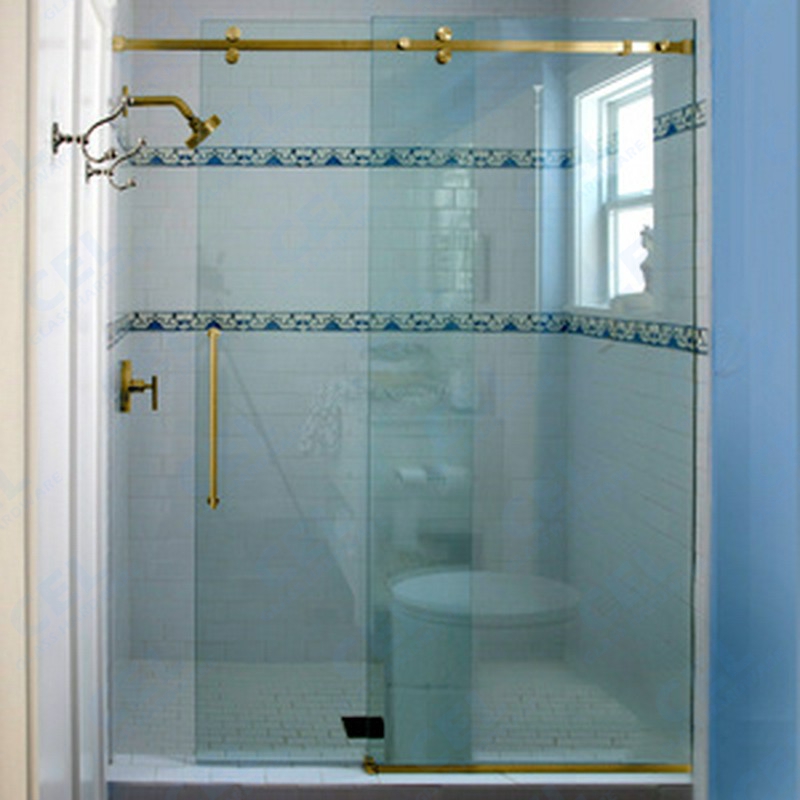

Our CRL Deluxe 180 Degree Serenity Series Sliding System has an entirely different look from traditional sliding systems. The use of minimal hardware provides a frameless look that gives the enclosure an almost floating appearance. Specially designed roller bearings allow for quiet and easy opening and closing of the door. One sliding panel and one fixed panel make the Deluxe Serenity Series both practical and beautiful.


The Deluxe Kit Includes:
  • One - 78-3/4" (2 m) Length Header Bar
  • Four - Rollers

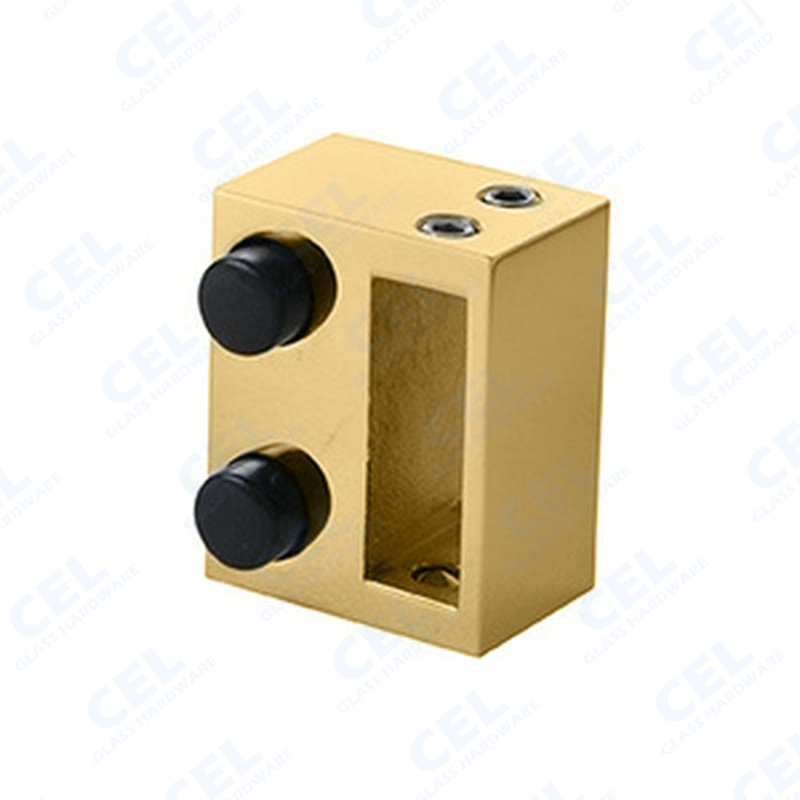

  • One - Stopper

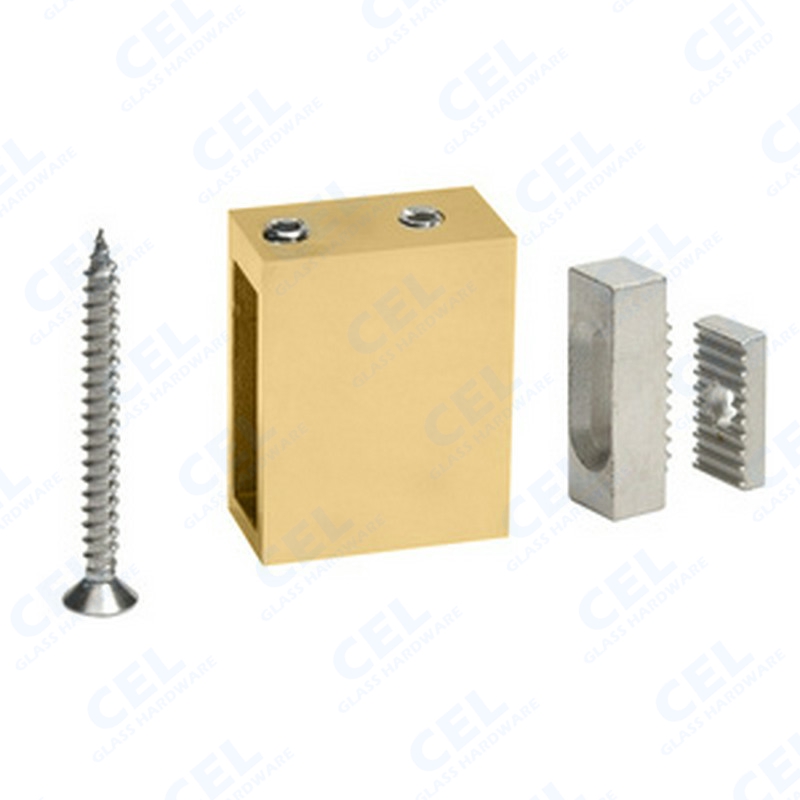

  • Two - Track Holder Fittings for Wall
  • Two - Track Holder Fittings for Fixed Panel

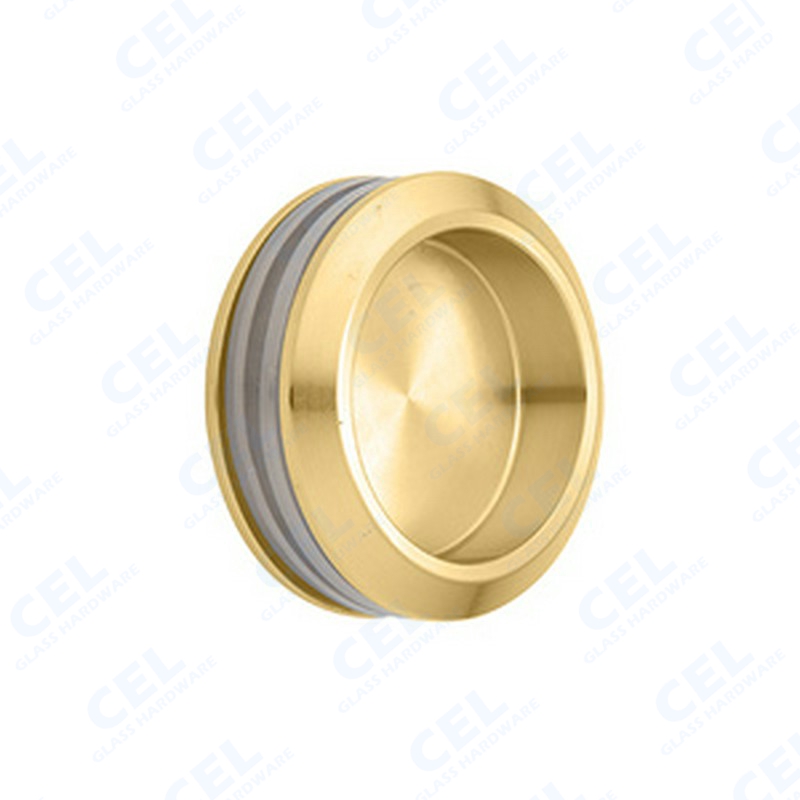

  • One - Thru-Glass Pull
  • One - Door Guide
  • One - 85" (2.16 m) Clear L-Jamb

    SPECIFICATIONS:
  • Glass Thickness Range: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass (Not Included)
  • Material: Stainless Steel
  • Maximum Door Size: Do Not Exceed Either 30" (762 mm) Wide or 88 Pounds (40 kg)
  • Fabrication: Holes Required in Both Door and Fixed Panel
    A 90 Degree Accessory Kit may be purchased separately for use with 90 degree return panels. Available in either polished stainless steel or brushed stainless steel, the Deluxe Serenity Series Sliding System will work with 3/8" or 5/16" (10 or 8 mm) thick tempered glass (not included). Do not exceed either 30" (762 mm) or 88 pounds (40 kg) for the door size. Glass fabrication is required in both the door and fixed panel.
