EH226, Hinge for 1/4" Gold

QUICK SHIPPING* Usually ships in 7 business day
Quantity:
In Stock
Model: EH226
Sku: EH226
Delivery Pick Up
Login To See Your Price

Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

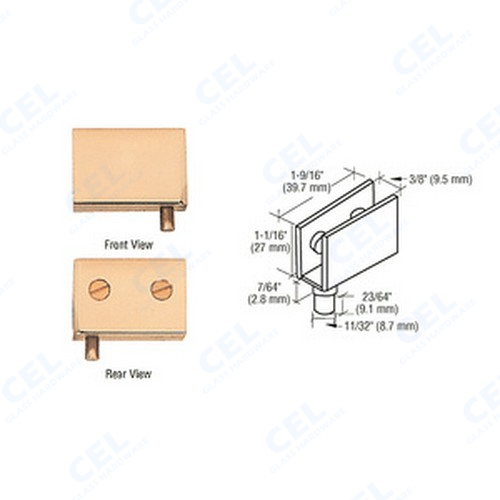

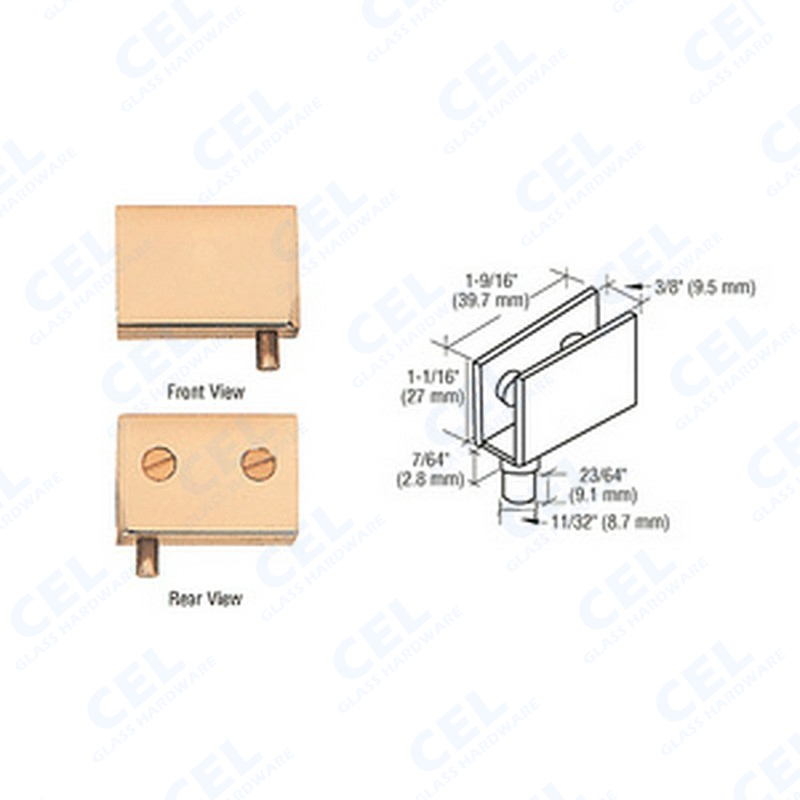

EH226,CRL Polished Brass Glass Door Pivot Hinges

Product details

  • Finish/Color:
    Polished Brass
  •
  • Glazing Thickness
    1/4 in. To 5/16 in. (6mm To 8 mm)
  •
  • Height
    1-1/16 in. (27 mm)
  •
  • Material
    Brass
  •
  • Maximum Door Width
    14 in. (355.6 mm)
  •
  • Pack Quantity
    2
  •
  • Weight Capacity
    18 lbs. (8.2 kg)
  •
  • Width
    1-9/16 in. (39.7 mm)
Product Overview




  • No Holes or Cut-Outs Required
  • Available in Several Finishes
  • For 1/4" to 5/16" (6 to 8 mm) Glass
  • Easy-to-Install

The maximum recommended door width is 14" (356 mm) for Standard Hinges and 20" (508 mm) for Wide Hinges. Maximum weight should not exceed 18 lbs. (8.2 kg) for Standard Series and 28 lbs. (12.7 kg) for Wide Series. Minimum required clearance is 3/16" (5 mm) top and bottom. One set top and bottom per pack.
