V1E344:CV1E344MB-CEL

QUICK SHIPPING* Usually ships in 7 business day
Quantity:
Model: {{ product.model }}
Sku: {{ product.sku }}
Shipping Pick Up

{{ variable.name }}

{{ value.name }}
Login To See Your Price

Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

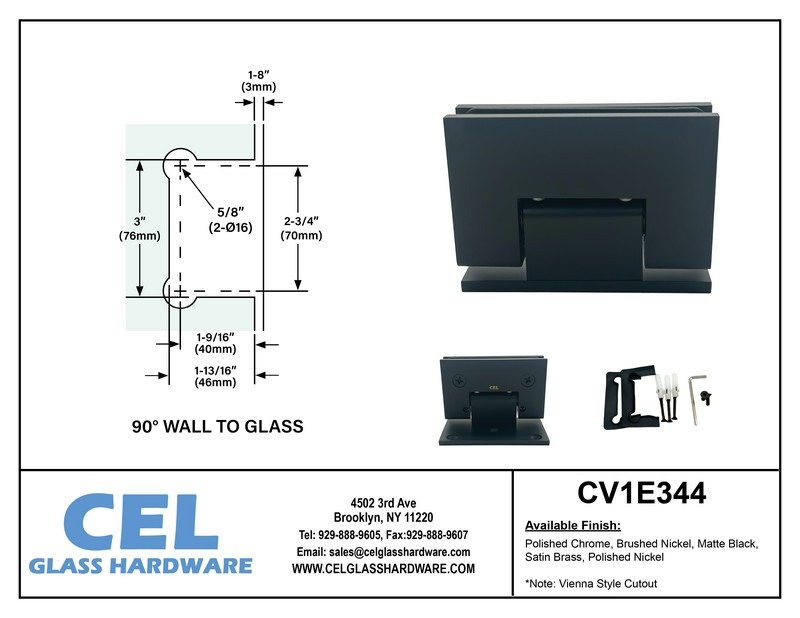

MODEL# CV1E344

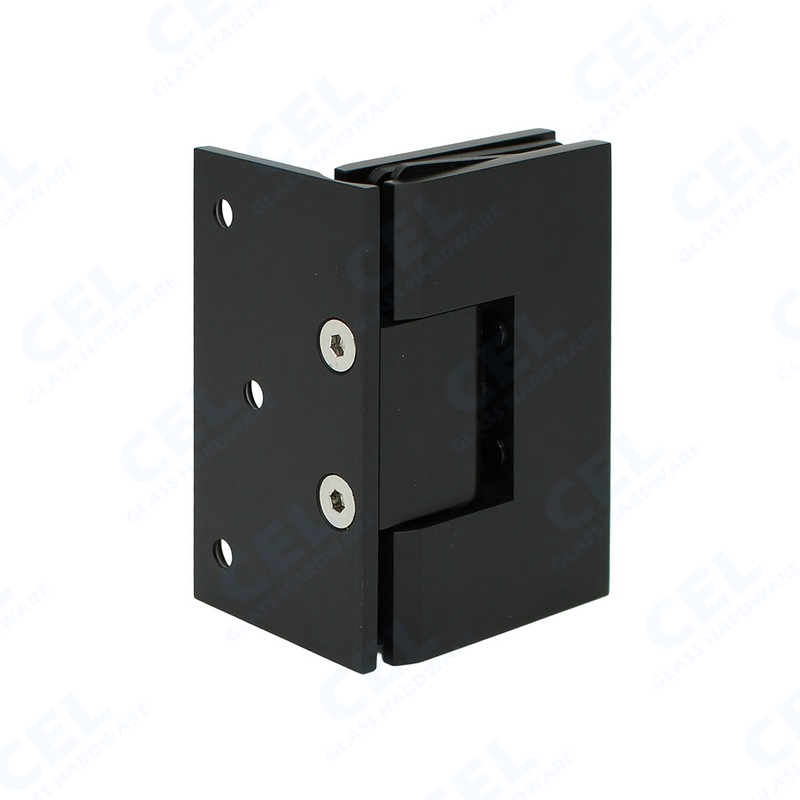

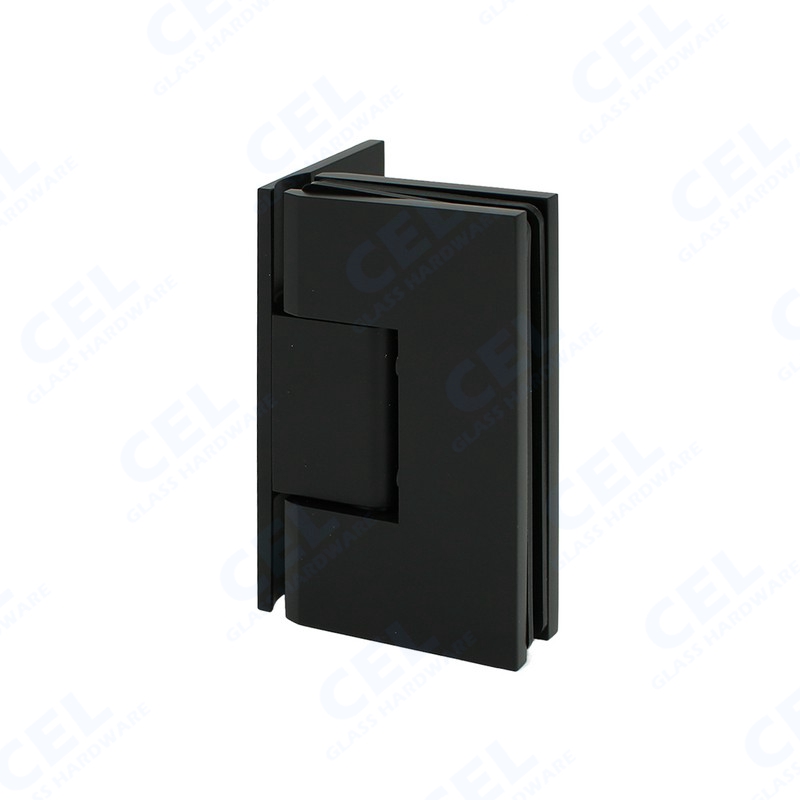

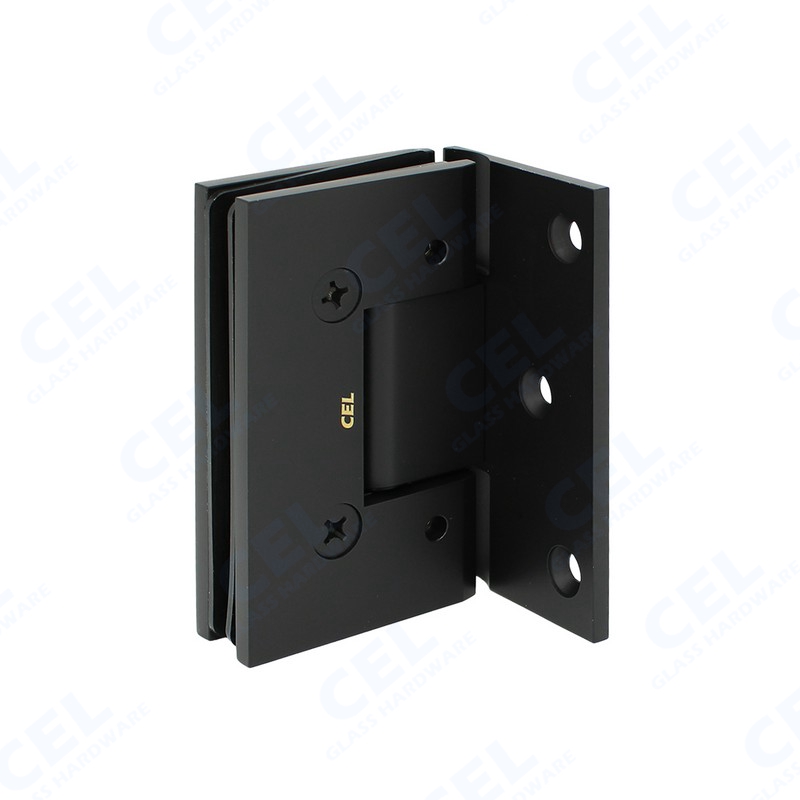

Adjustable Wall Mount Offset Back Plate Hinge for Frameless Shower Door

Height (inches) 4"
Self-Centering YES
Max. Door Width for 3/8 Glass (inches) 34"
Max. Door Width for 1/2 Glass (inches) 32"
Width (inches) 2 5/16"
5 Degree Pre-Set NO
Max. Door Weight for 2 Hinge (lbs) 100 LBS
Max. Door Weight for 3 Hinge (lbs) 130 LBS



SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

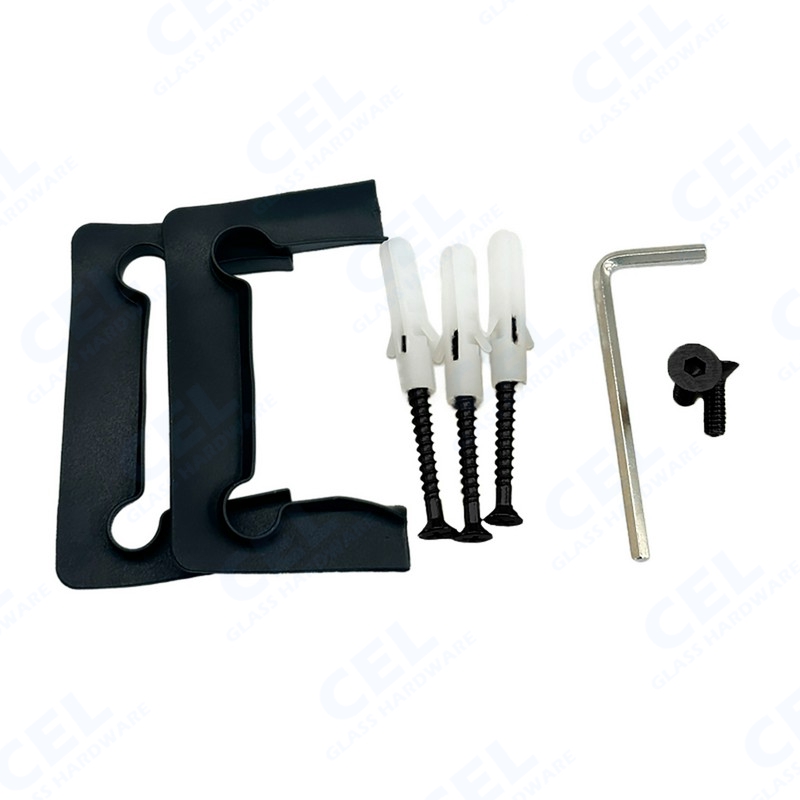

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.

Adjustable up to 90 Degrees



Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
