V1E180:CV1E180CH-CEL

QUICK SHIPPING* Usually ships in 7 business day
Quantity:
In Stock
Model: CV1E180
Sku: CV1E180CH
Shipping Pick Up

Finish/Color

Matte Black
Brushed Nickel
Polished Chrome
Satin Brass
Polished Nickel
Login To See Your Price

Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

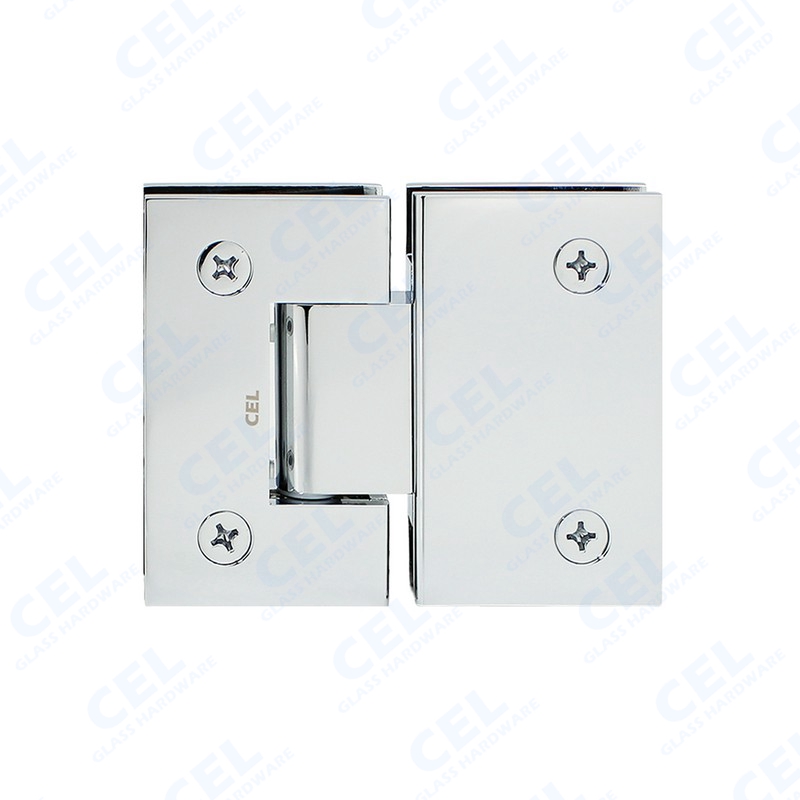

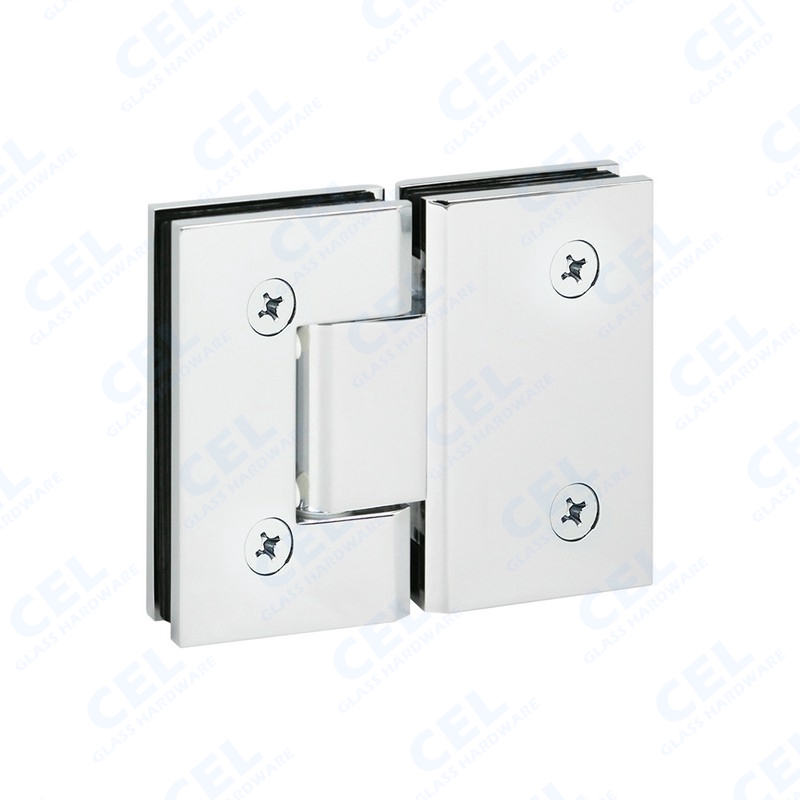

180 Degree Glass to Glass Hinge

Height (inches) 3 15/16"
Edge Profile Square
Material Brass
Adjustable NO
Self-Centering YES
Max. Door Width (inches) 36"
Width (inches) 2 1/4"
Width-Sidelite Portion (inches) 2 1/4"
Mounting Type (Degree) Glass to Glass (180°)
Glazing Thickness (Inches) 3/8" to 1/2"
5 Degree Pre-Set NO
Max. Door Weight for 2 Hinge (lbs) 100 LBS
Max. Door Weight for 3 Hinge (lbs) 130 LBS



SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

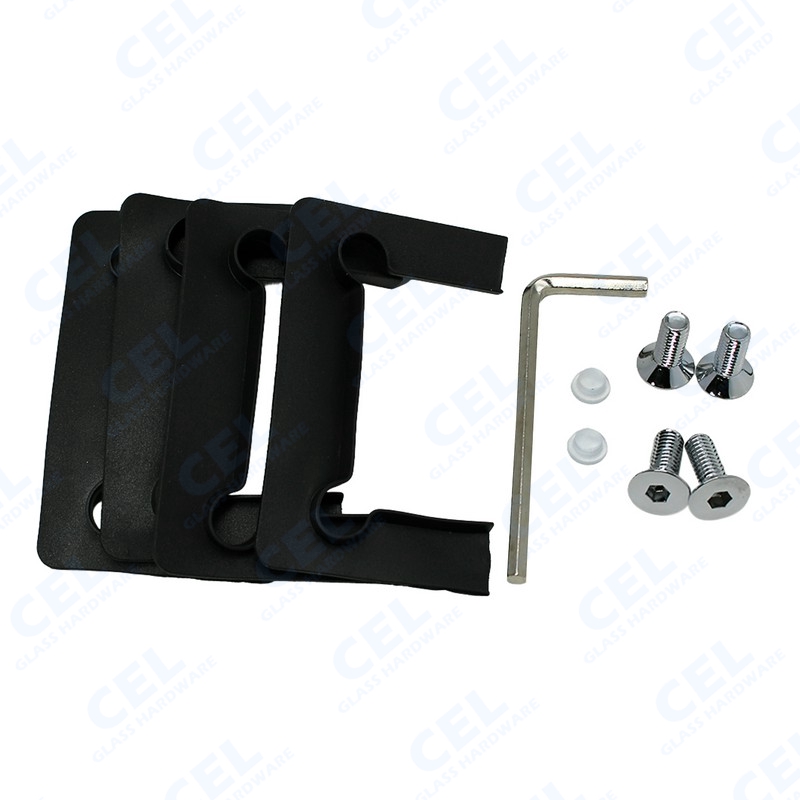

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.



Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
