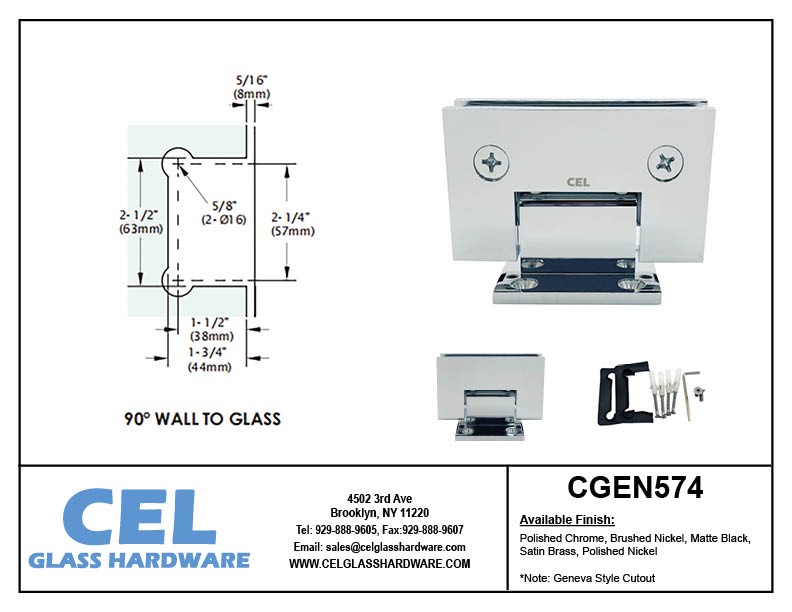

MODEL#CGEN574

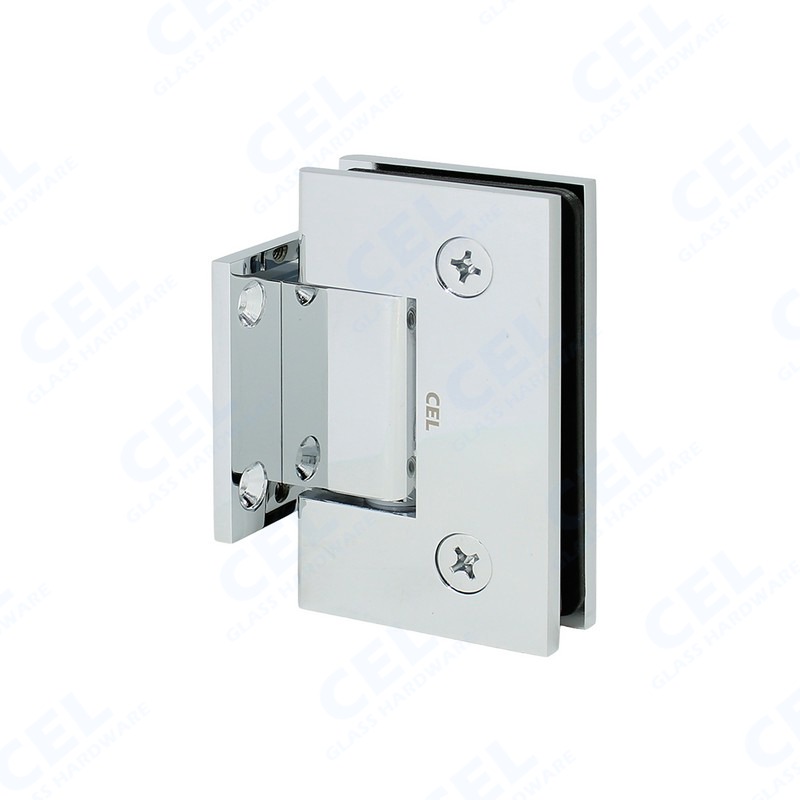

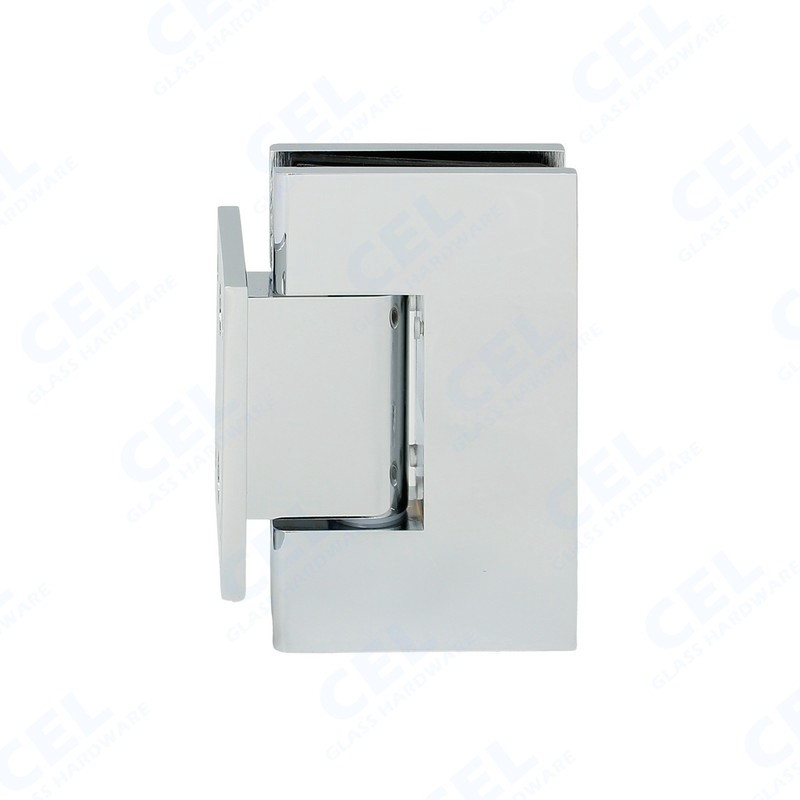

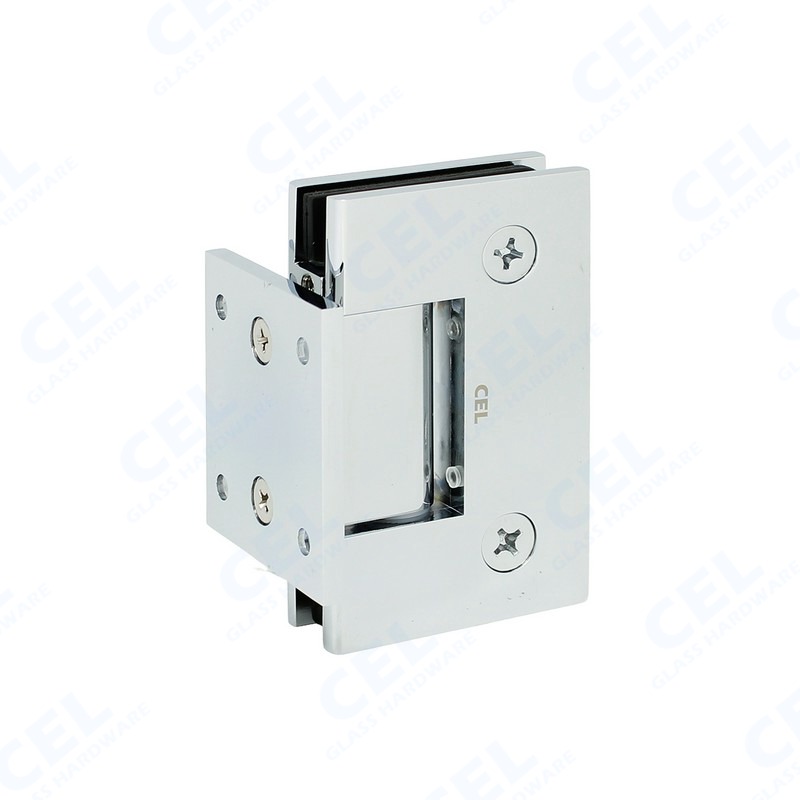

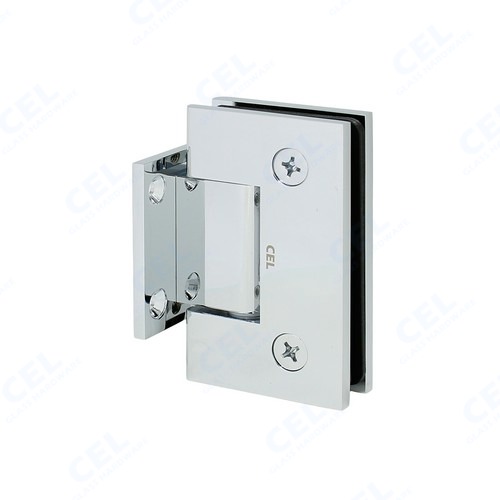

5 Degree Pre-Set, Wall Mount Short Back Plate Hinge for Frameless Shower Door
Compare to : GEN574

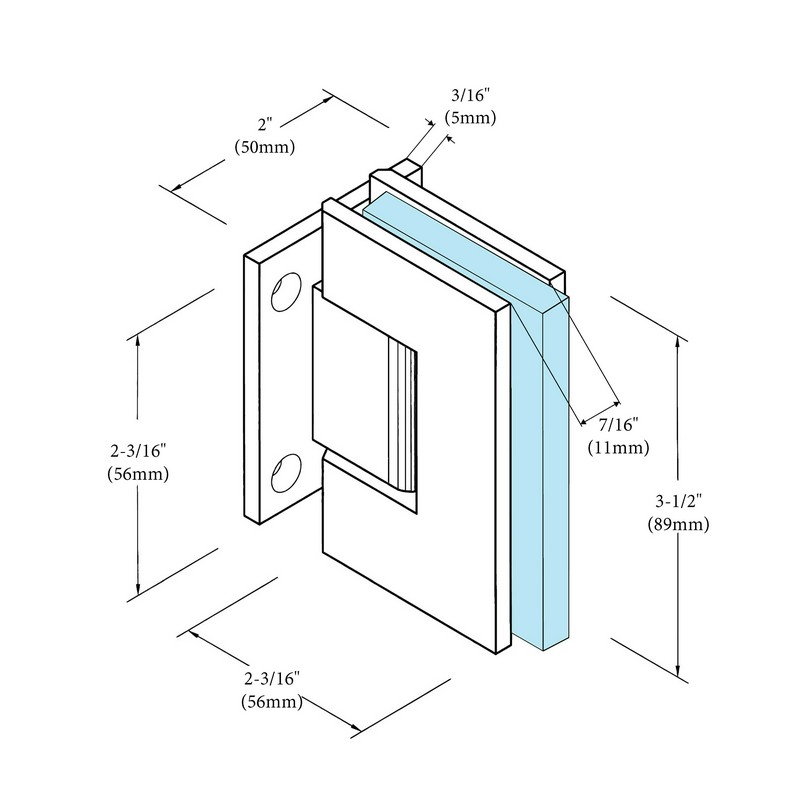

Height (inches) | 3 1/2" |
Width (inches) | 2 3/16" |
Max. Door Width for 2 Hinges (inches) | 28" |
Max. Door Width for 3 Hinges (inches) | 32" |
Max. Door Weight for 2 Hinge (lbs) | 80 lbs |
Max. Door Weight for 3 Hinge (lbs) | 120 lbs |
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2"
Hinge Swings: 90 degree in and 90 degree Out

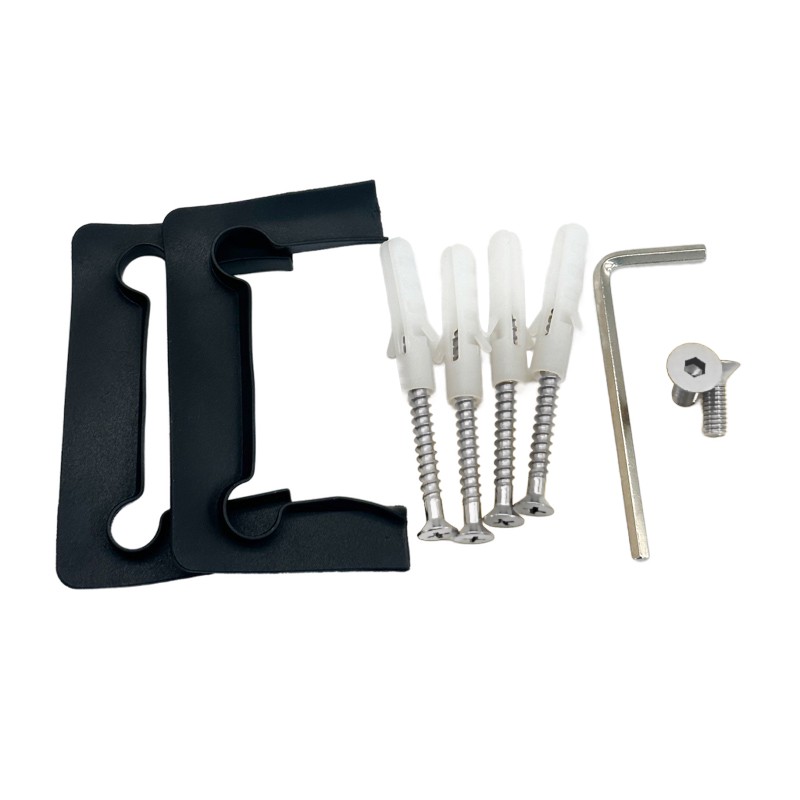

Included: Hinge Body, Gaskets, Screws and Template
Use for Residential Bath and Commercial Hotel Applications.
Gasket:
For 3/8" (10mm) Glass, Use one thick Gasket on each side
For 1/2" (12mm) Glass, Use one thin Gasket on each side
Care & Cleaning Guidelines:
Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
Recommendation: Use of only tempered safety glass. Do not power tool when installing these hinges.
