CGEN544, 5 Degree Pre-set, Wall Mount Offset Back Plate Hinge for Frameless Shower door

QUICK SHIPPING* Usually ships in 7 business day
Quantity:
Model: {{ product.model }}
Sku: {{ product.sku }}
Shipping Pick Up

{{ variable.name }}

{{ value.name }}
Login To See Your Price

Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Model# CGEN544

5 Degree Pre-set, Wall Mount Offset Back Plate Hinge for Frameless Shower door



Height (inches)

3 1/2"

Width (inches)

2 3/16"

Max. Door Width for 2 Hinges (inches)

28"

Max. Door Width for 3 Hinges (inches)

32"

Max. Door Weight for 2 Hinge (lbs)

80 lbs

Max. Door Weight for 3 Hinge (lbs)

120 lbs



SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.



Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.



Recommendation: Use of only tempered safety glass. Do not power tool when installing these hinges.

Relative Products
C2861B
SUPPORT BAR:C2861BBN, Square, Glass to Wall
Brushed Nickel 39 3/8-45 1/4
Shipping Pick Up

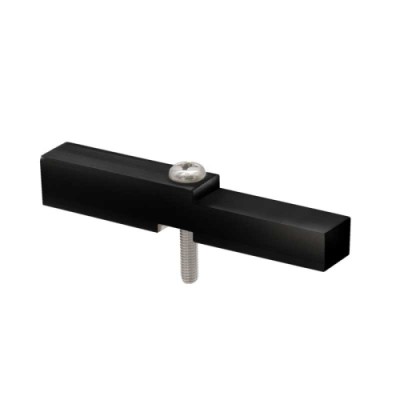

HAB01
HEADER KIT:HAB01MBL-CRL ADAPTER 3/8
Matte Black
Shipping Pick Up
PAT07
PPH07:PAT07MB-FHC
Matte Black
Shipping Pick Up
CSQ8X24
SQ8X24:CSQ8X24SB-CEL
Satin Brass
Shipping Pick Up
CSB90G
CSB90G:CSB90GBN
Brushed Nickel
Delivery Pick Up

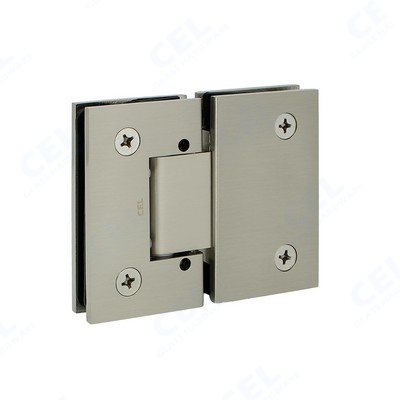

CGEN380
GEN380:CGEN380BN-CEL
Brushed Nickel
Shipping Pick Up
CV1E180
V1E180:CV1E180MB-CEL
Matte Black
Shipping Pick Up
CP1N380
P1N380:CP1N380BN-CEL
Brushed Nickel
Shipping Pick Up

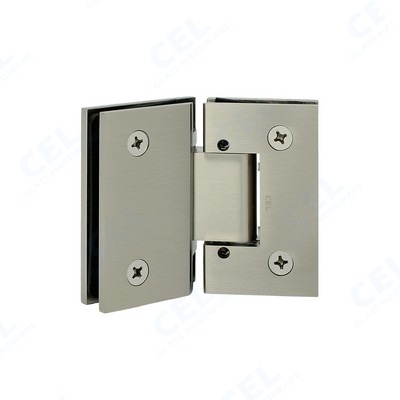

CGEN345
GEN345:CGEN345BN-CEL
Brushed Nickel
Shipping Pick Up

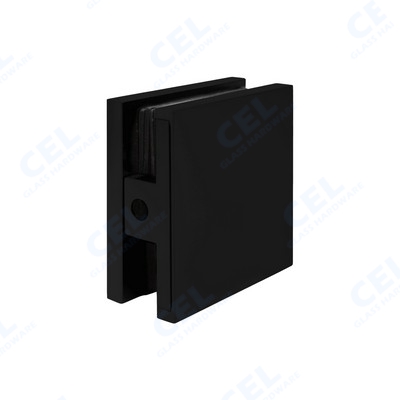

CSB90
