CGEN544, 5 Degree Pre-set, Wall Mount Offset Back Plate Hinge for Frameless Shower door

QUICK SHIPPING* Usually ships in 7 business day
Quantity:
Model: {{ product.model }}
Sku: {{ product.sku }}
Shipping Pick Up

{{ variable.name }}

{{ value.name }}
Login To See Your Price

Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Model# CGEN544

5 Degree Pre-set, Wall Mount Offset Back Plate Hinge for Frameless Shower door



Height (inches)

3 1/2"

Width (inches)

2 3/16"

Max. Door Width for 2 Hinges (inches)

28"

Max. Door Width for 3 Hinges (inches)

32"

Max. Door Weight for 2 Hinge (lbs)

80 lbs

Max. Door Weight for 3 Hinge (lbs)

120 lbs



SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.



Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.



Recommendation: Use of only tempered safety glass. Do not power tool when installing these hinges.

Relative Products
CBM6X18
BM6X18:CBM6X18CH-CEL
Polished Chrome
Shipping Pick Up
CV1E380
V1E380:CV1E380BN-CEL
Brushed Nickel
Shipping Pick Up
CSQ24
SQ24:CSQ24BN-CEL
Brushed Nickel 24"
Shipping Pick Up
CBM24
BM24:CBM24BN-CEL
Brushed Nickel 24"
Shipping Pick Up
CP1N580
P1N580:CP1N580BN-CEL
Brushed Nickel
Shipping Pick Up
C2861B
SUPPORT BAR:C2861BSB, Square, Glass to Wall
Satin Brass 39 3/8-45 1/4
Shipping Pick Up

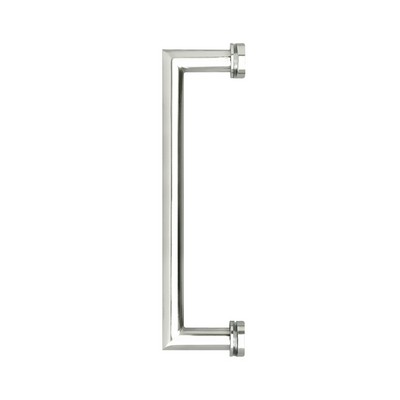

CMT12X12
