MODEL# CGEN345

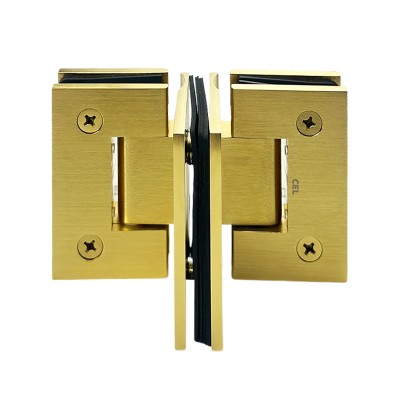

Adjustable 135 Degree Glass to Glass Hinge for Frameless Shower Door

Compare to : GEN345

Height (inches) 3 1/2"
Width-Door Portion (inches) 2 3/16"
Width-Sidelite Portion (inches) 1 15/16"
Self-Centering YES
Max. Door Width for 2 Hinges (inches) 28"
Max. Door Width for 3 Hinges (inches) 32"
Max. Door Weight for 2 Hinge (lbs) 80 LBS
Max. Door Weight for 3 Hinge (lbs) 120 LBS

SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.



Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.



Recommendation: Use of only tempered safety glass. Do not power tool when installing these hinges.
