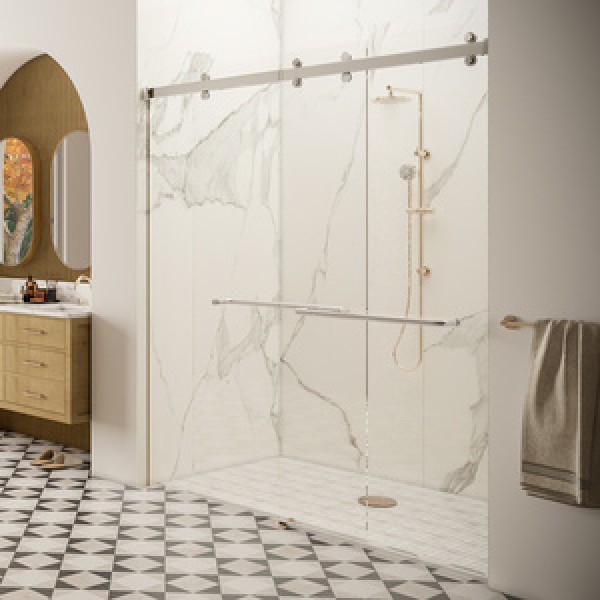

CAM73, CRL Deluxe 180 Degree Cambridge Series Two Door Bypass Sliding Shower Door System (Hardware Only)
QUICK SHIPPING* Usually ships in 7 business day
Quantity:
In Stock
Out Of Stock
Model: {{ product.model }}
Compare To:{{ product.cj_compare_to }}
Delivery Pick Up
{{ variable.name }}
{{ value.name }}
Login To See Your Price
Shop with Confidence
30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
CAM73, CRL Deluxe 180 Degree Cambridge Series Two Door Bypass Sliding Shower Door System (Hardware Only)
Product details
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Length
73 in. (1854 mm)
Material
Stainless Steel
Maximum Door Height
80 in. (2032 mm)
Maximum Door Weight
84 lbs. (38.1 kg)
Maximum Door Width
37 in. (940 mm)
Maximum Opening Width
73
Roller Location
Top
Series
Cambridge
Product Overview
System Features Two Bypassing Sliding Doors
Specially Designed Roller Bearings for Quiet Door Movement
Available in Polished or Brushed Stainless and Matte Black
The Cambridge Series Two Door Bypass Sliding Shower Door System utilizes a modern top roller fitting that features four rollers on each door for ease of sliding. This quiet, smooth sliding system is made of high quality stainless steel, thus ensuring easy opening and closing of the door. The Cambridge Series Sliding Shower Door System is versatile in design, able to adapt to full standing showers or above bathtubs. A 90 Degree Accessory Kit may be purchased separately for use with 90 degree return panels. Available in either polished stainless steel, brushed stainless steel, or matte black. The Cambridge Sliding System will work with 3/8" or 5/16" (10 or 8 mm) thick tempered glass (not included).
Each Cambridge Kit includes the following: 1 - 73" (1854 mm) Length Stainless Header Bar 8 - Stainless Steel Rollers 2 - Stoppers 2 - Track Holder Fittings for Wall 1 - Bottom Guide 2 - 24" (610 mm) Stainless Towel Bars 2 - 80" (2.03 m) Clear L-Jamb 2 - 40" (1016 mm) Bottom Sweep With Drip Rail 1 - Tool Kit
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass (Not Included)
Material: Stainless Steel
Maximum Sliding Door Size: Do Not Exceed Either 37" (940 mm) Wide or 84 Pounds (38 kg)
Glass Fabrication: Holes Required in Both Doors
Maximum Door Height (Inches): 80" (2032 mm)
CAM73 -Cambridge Series CAM73 Bypass Sliding Door Kit Installation Instructions.pdf
