V1E037:CV1E037BN-CEL

QUICK SHIPPING* Usually ships in 7 business day
Quantity:
Model: {{ product.model }}
Sku: {{ product.sku }}
Shipping Pick Up

{{ variable.name }}

{{ value.name }}
Login To See Your Price

Shop with Confidence

30 Days Easy Return. We are one of the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

MODEL# CV1E037

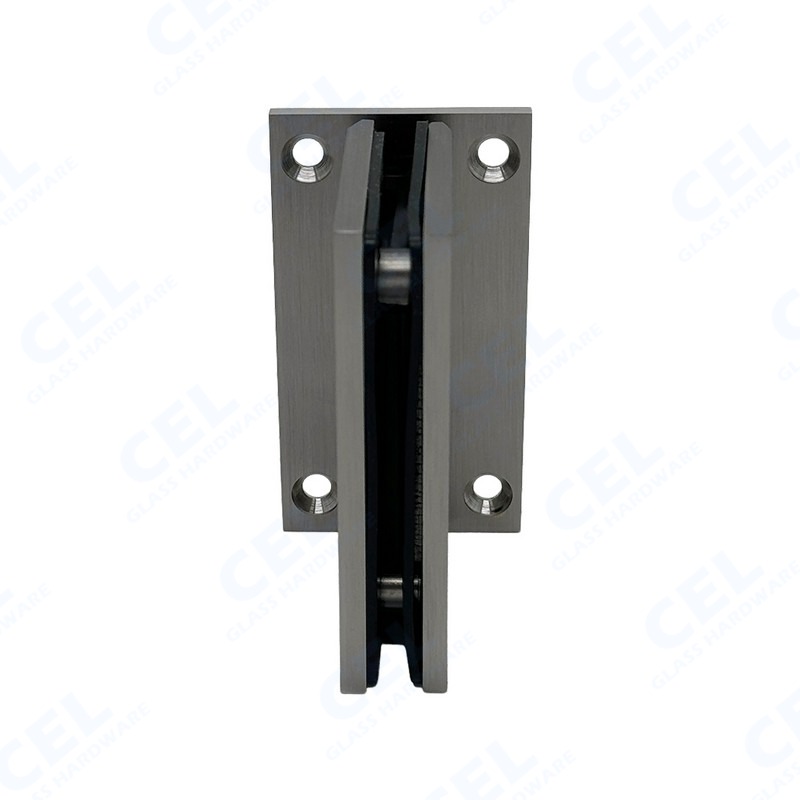

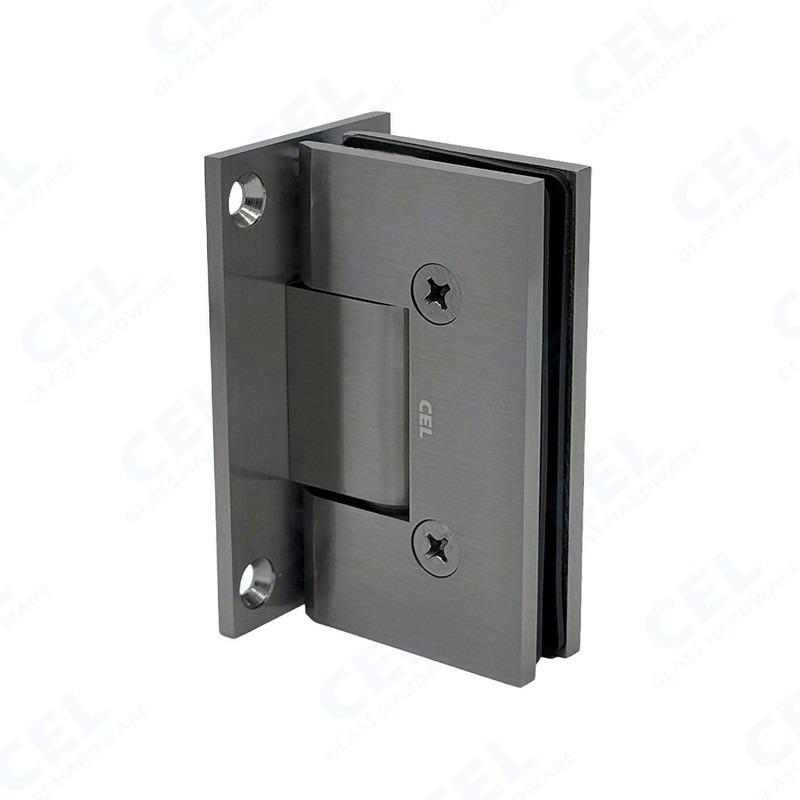

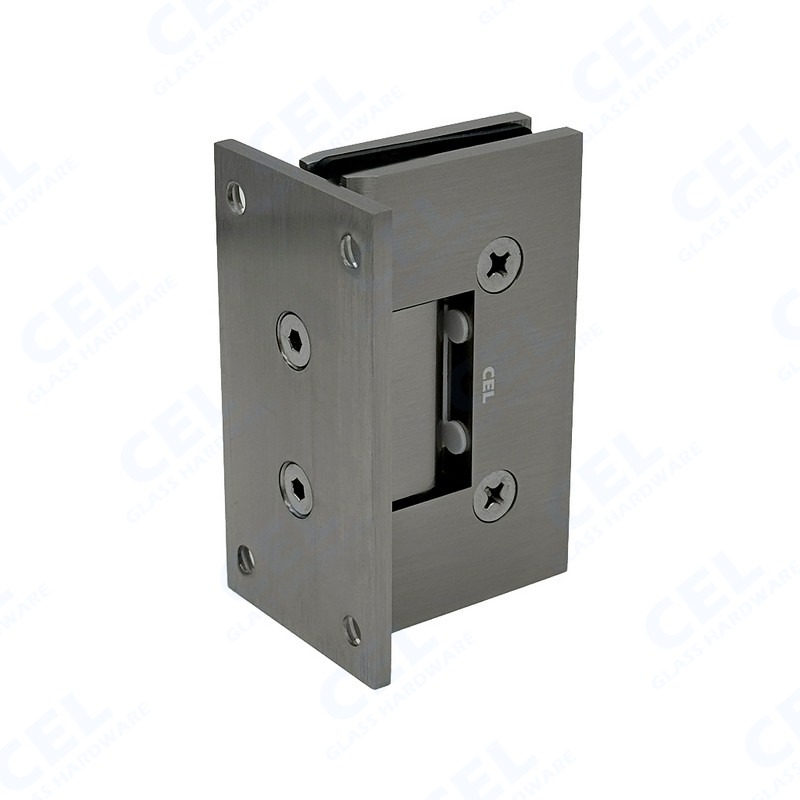

Wall Mount Full Back Plate Hinge for Shower Door

Height (inches) 4"
Max. Door Width for 2 Hinges (inches) 36"
Max. Door Width for 3 Hinges (inches) 36"
Width (inches) 2 5/16"
Max. Door Weight for 2 Hinge (lbs) 110 LBS
Max. Door Weight for 3 Hinge (lbs) 140 LBS



SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.

Adjustable to Any Angle Up to 90 Degrees without Removing Door

Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
